SYSTEMS :

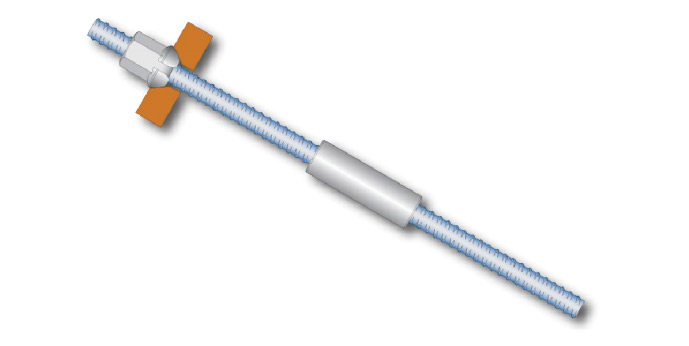

BB BAR




BB BAR

- High Grade Steel Thread Bar



Conforming to ASTM A722 and AS/NZS 4672 and all other major international standards. Produced under quality
control systems ISO9001: 2015.

Robust hot rolled continuous thread profile offers high bond strength, can be cut and coupled at any point,
low susceptibility to mechanical damage, easy installation and cleaning.

Supported with a wide range of proprietary accessories to accommodate multiple application. Tailor made solutions can
also be designed on a case by case basis.

Corrosion protection systems for geotechnical application in accordance with BS8081, DIN EN 1537:2014
or other international standards can be provide.

Value added services including rental of stressing equipment for installation, preparation of method statements
for handling, assembly and installation etc. Provision of qualified staff to supervise installation works.

BB bar

APPLICATIONS






Post-Tensioning Bar Tendons
Form Ties
Mini and Micro Piles
Ground Anchors
Soil Nails
Rock Bolts
Tie Rods
Heavy Lifting and Launching
Hanger and Suspension Rods




BB BAR

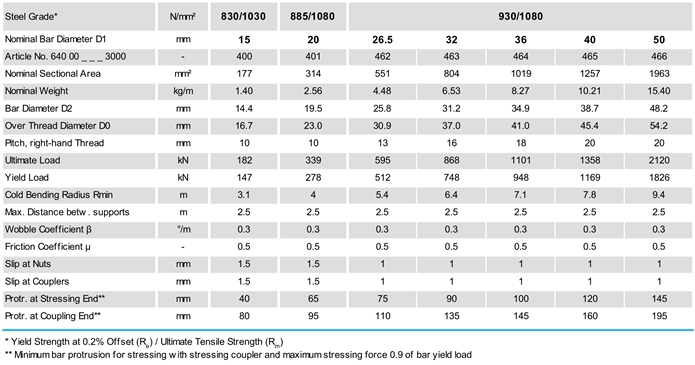

PROPERTIES




BB bar

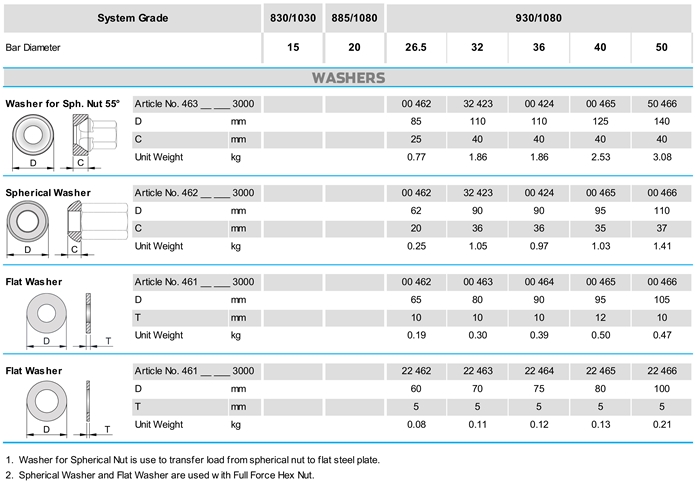

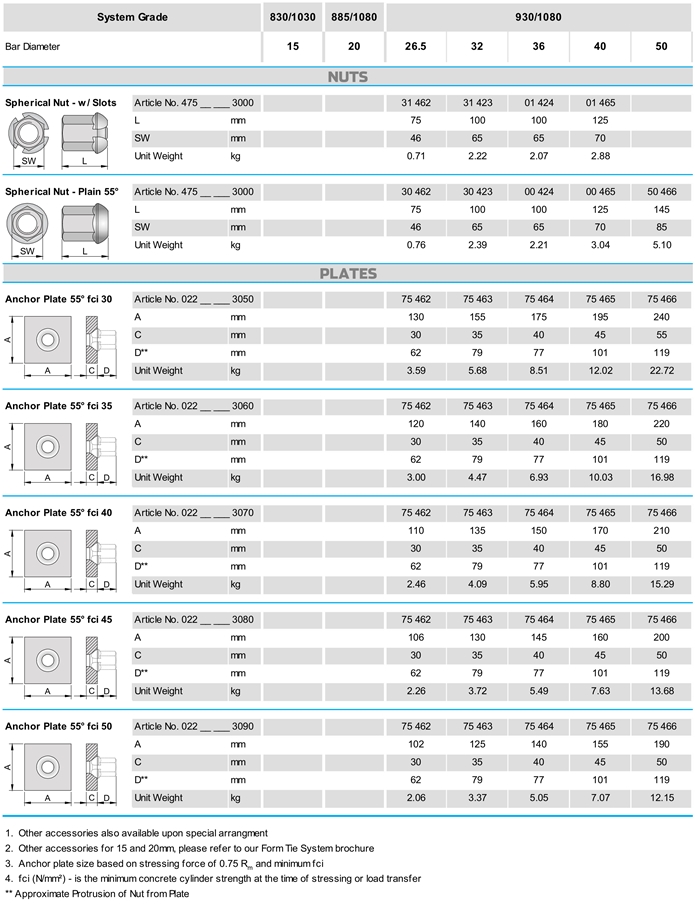

SPHERICAL ANCHORAGE

ACCESSORIES

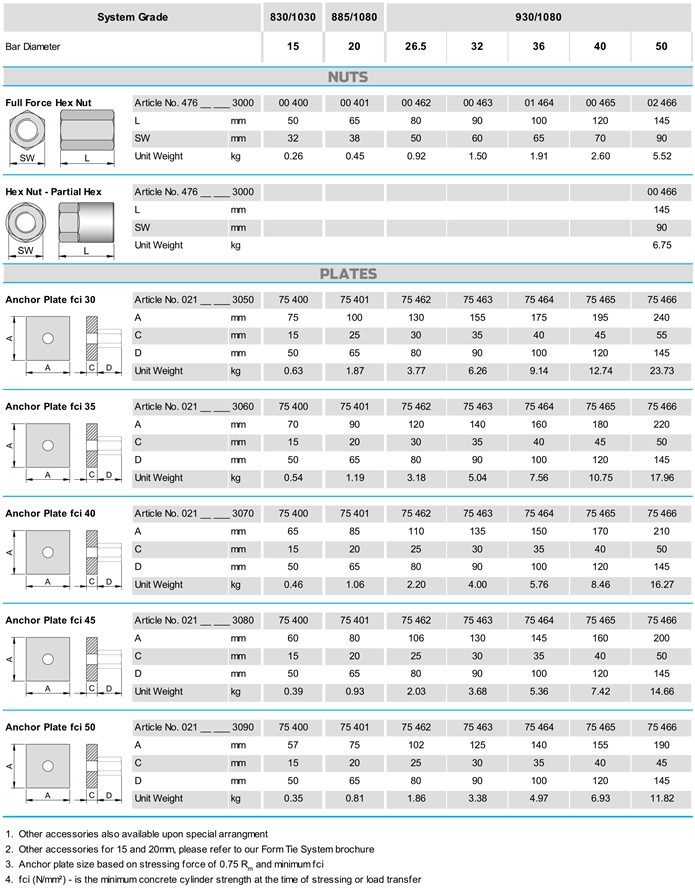

FLAT ANCHORAGE

ACCESSORIES

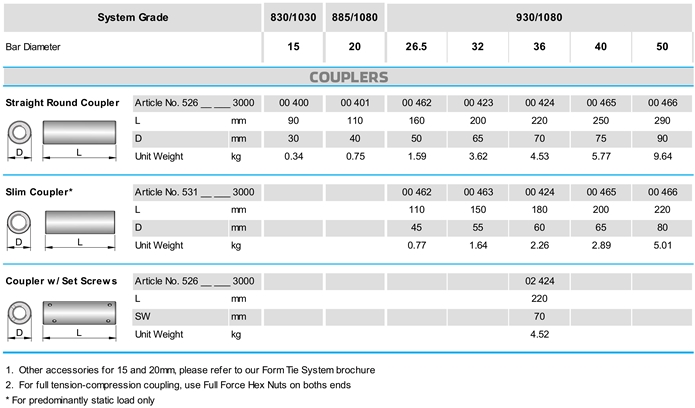

COUPLER

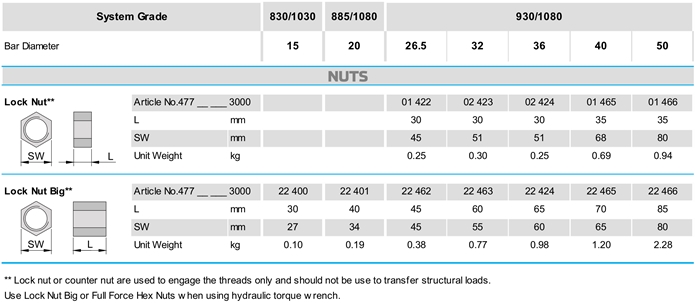

LOCK NUTS

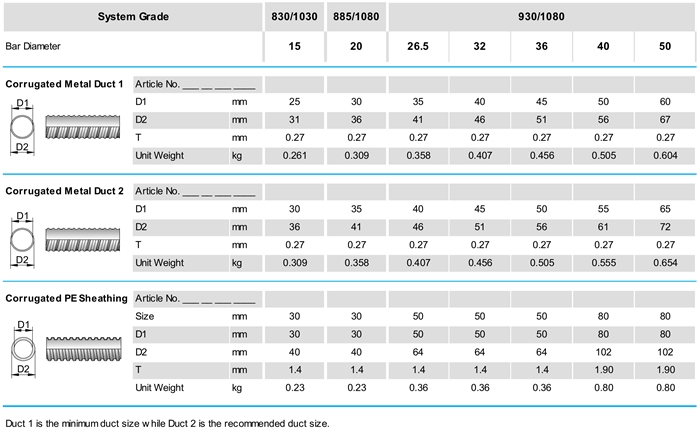

DUCTS / SHEATHING

ACCESSORIES

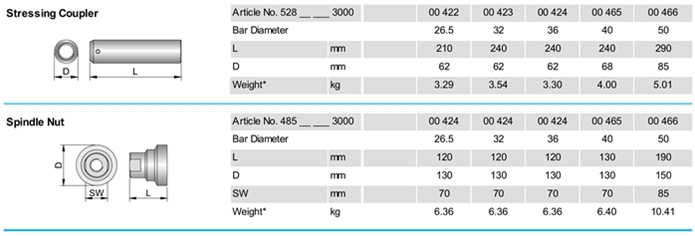

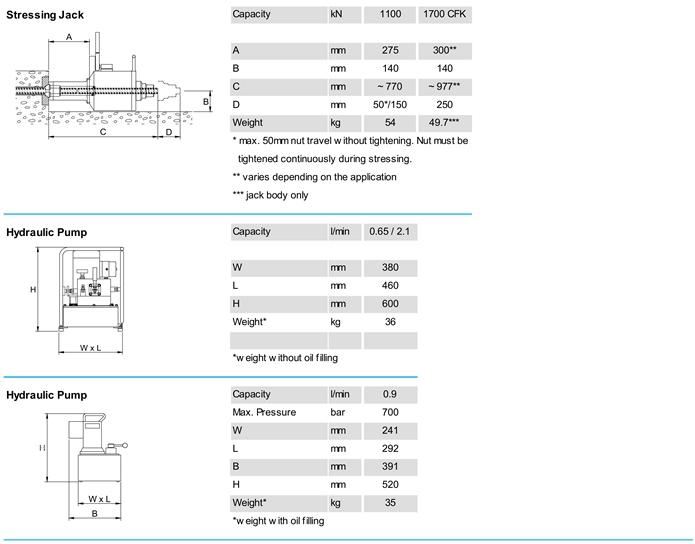

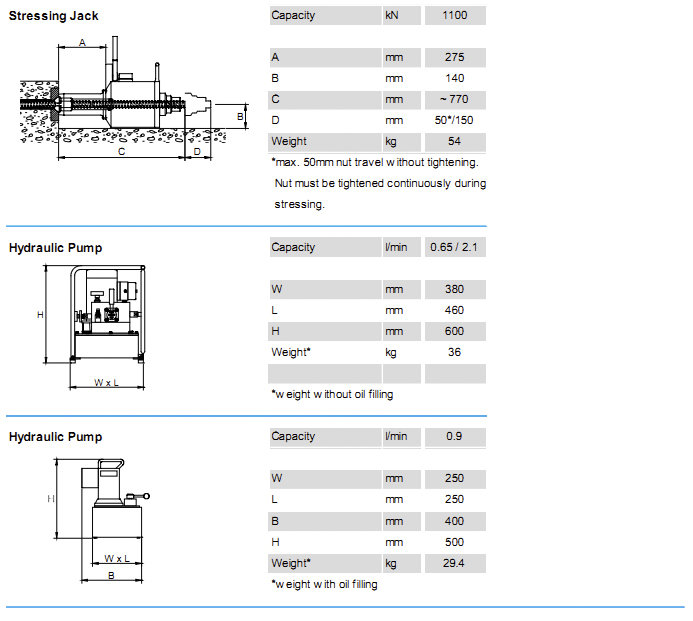

STRESSING EQUIPMENT &

ACCESSORIES





The data contained herein is considered representative of our current production but we reserve the right to make changes and improvements to the products and/or the process which may result in benefit and/or changes to physical/mechanical characteristics.
